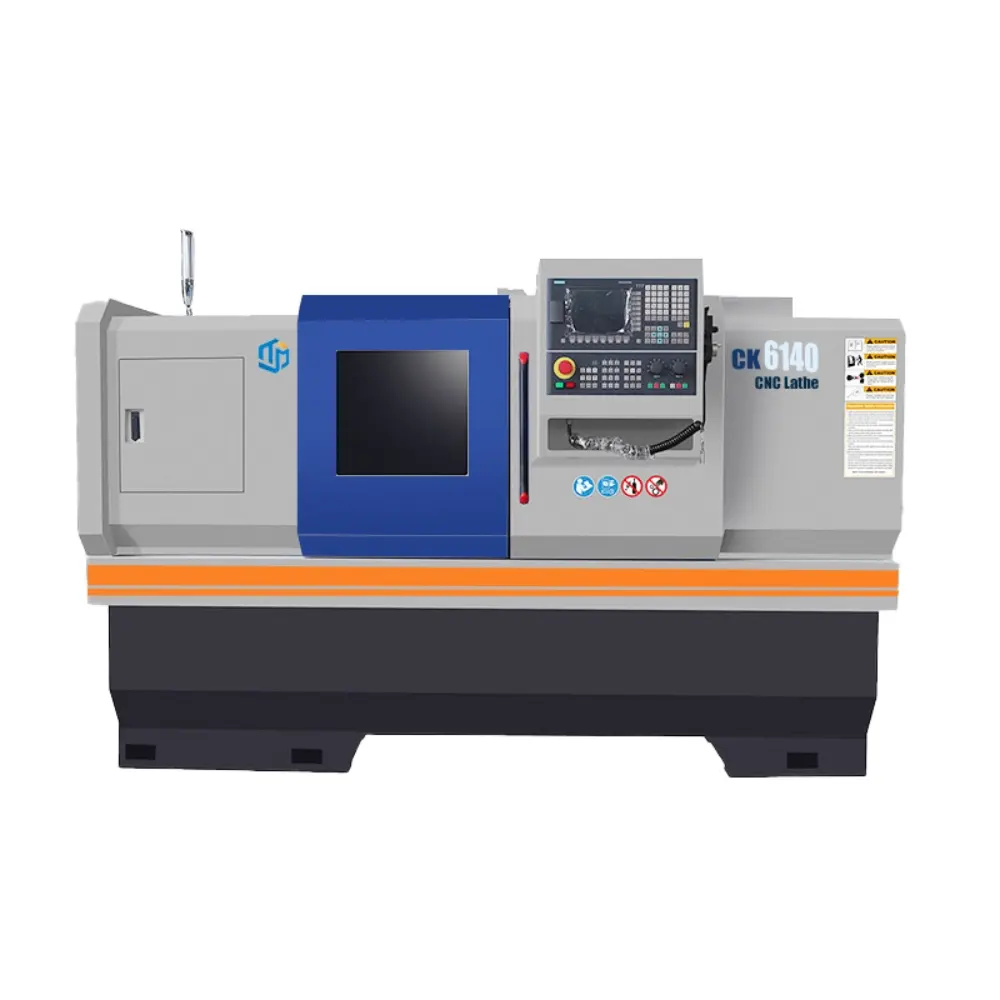

It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard. 1.High rigidity pedestal and wider lay board are suitable for heavy cutting 2.Four station electric turret 3.Frequency conversion stepless speed regulation
| Specification Capacity | CK6140 |
| Chuck size | 10″ |
| Max.swing dia over bed | 400mm |
| Max.swing dia over slide | Φ240mm(φ220mm) |
| Distance between center | 500/750/1000/1500mm |
| Width of bed | 330mm |
| Spindle | |
| Spindle speed range | 150-2200rpm |
| Spindle bore | φ60mm |
| Max.dia of through-hole | φ50mm |
| Spindle nose | A2-6 |
| Spindle taper | MT6 |
| Axis | |
| Xaxis travel | 250mm |
| Zaxis travel | 500/750/1000/1500mm |
| XZ axis rapid traverse | 6/8m/min |
| Turret type | |
| Turret type | Electric type |
| No of tool stations | 4,*6,*8 position |
| Max.section of tool | 25x25mm |

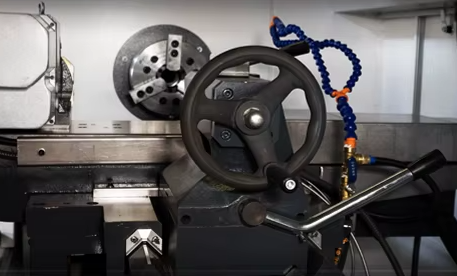

| Tailstock | |
| External diameter | φ55mm |
| Travel of tailstock quill | 120mm |
| Taper of talstock quill | MT4 |
| Motor | |
| Spindle motor power | 5.5kw,*7.5kw |
| Coolant pump power | 120w |
| Machine Dimensioris | |
| Overal dimension (L×W×H) | 1700/2050/2520/3050x1400x1680mm |
| Packing size(L×W×H) | 1850/2250/2640/3200x1530x2020mm |
| N.W | 1400/1600/1800/2200kg |
| GW | 1600/1800/2000/2400kg |

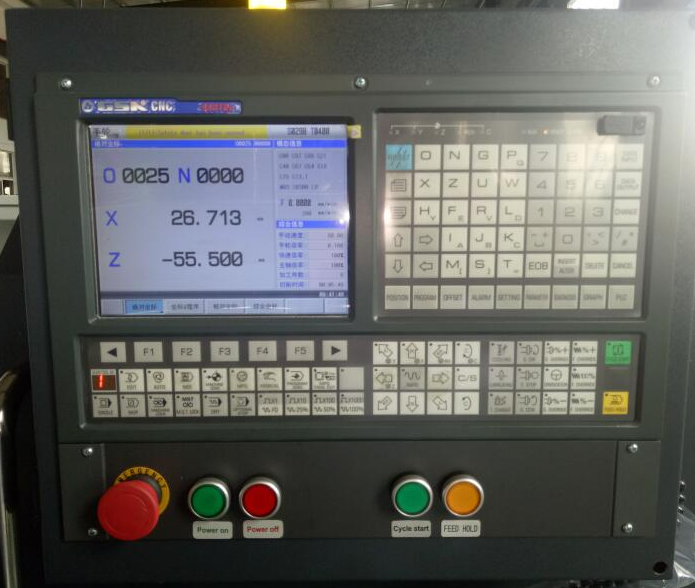

CNC controller :
Standard:GSK
Optional:Siemens,Fanuc ,syntec and others

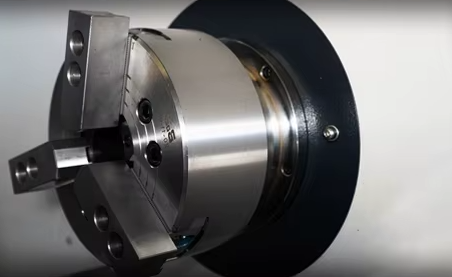

Chuck:
Standard:Manual
Optional:Hydraulic chucks and pneumatic chucks

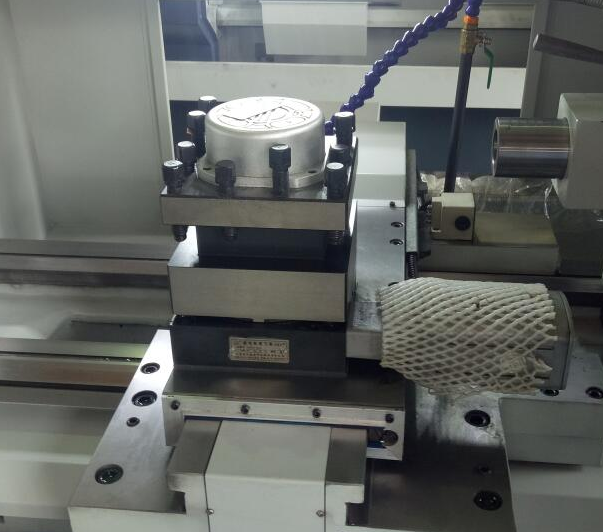

Toolpost:
Standard:4 position
Optional:6 or 8 position
Taistock:
Standard:Manual
Optional:Hydraulic chucks and pneumatic chucks
