This machine features a four-roll configuration. The upper roll serves as the main drive, while both upper and lower rolls can also be driven simultaneously. Powered by a hydraulic motor, it provides the necessary torque for plate rolling operations. The lower roll performs vertical lifting movements through hydraulic transmission – hydraulic oil in the cylinder acts on the piston to achieve this motion, allowing for secure clamping of the plates. On both sides of the lower roll, there are side rolls that move along the arc-shaped guide rails of the frame, also via hydraulic transmission. A key advantage of this machine is that both end pre-bending and rounding of plates can be completed on the same equipment.
| Model | W12-16×2500 |
| Max.rolingthickness | 16mm |
| Max. pre-bendingthickness | 12mm |
| Max.rollingwidth | 2500mm |
| Diameter oftop roler | 300mm |
| Diameterof bottom roller | 280mm |
| Diameter of side rolers | 220mm |
| Min.fullloadingdiameter of coiled plate | 500mm |
| Rolling speed | 4.5m/min |
| Motor power | 11kw |
CNC controller:

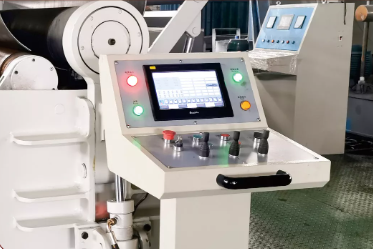

Manages roller positions, speed, and pressure for accurate results. It offers real-time monitoring, automatic adjustments, and a user-friendly interface to enhance efficiency, safety, and productivity.
Hardened rollers

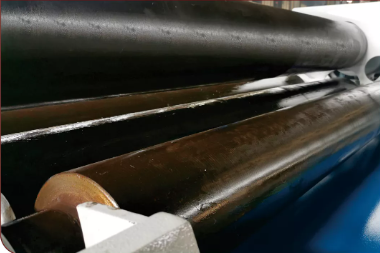

The rollers are solid and precision-ground for high accuracy and durability. Their smooth, finely polished surface ensures even pressure distribution and consistent bending results, contributing to improved performance and longer lifespan.
Hydraulic motor

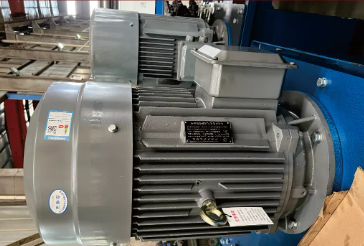

The hydraulic motor is from a trusted brand,offering reliable performance, energy efficiency,and long-lasting durability. It provides smooth,quiet operation with no emissions, meeting,eco-friendly standards.
Electrical cabinet

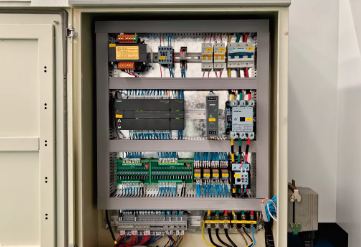

Uses reliable branded components, with a user-friendly control panel, efficient wiring, and safety features.It ensures stable operation, easy maintenance, and long-lasting performance.
Unloading device

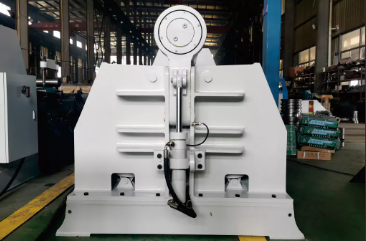

It is used to balance the upper roller during the unloading process. The device is operated by a hydraulic cylinder, which performs both the unloading and recovery functions.
