Especificação	GMC1840
Mesa de trabalho
Tamanho da mesa de trabalho (C×L)	4000×1800mm
T-slots size (N×W×D)	11-22×160mm
Viagem
X/Y/Z axis travel	4200/1850/1000mm
Capacity
Distância da ponta do fuso à superfície da mesa de trabalho	260-1260mm
Distance between two columns	2000mm
Fuso
Cone do fuso	BT50
Potência do fuso	15/18.5kw
Velocidade máxima do fuso	6000rpm
Spindle torque	143N·m
Alimentar
Velocidade de avanço rápido (X/Y/Z)	10/10/10m/min
Fuso de esferas (diâmetro + avanço)
Fuso de esferas do eixo X/Y/Z	8020/6320/5016
X/Y/Z guideway type	X/Y:roller linear guideways, Z:box guideway
Tool magazine
Capacidade do carregador de ferramentas	24T
Comprimento máximo da ferramenta	350mm
Tool change time (T-T)	3s
Positioning accuracy (GB standard)
Positioning accuracy（X/Y/Z）	0.03mm
Re-positioning accuracy（X/Y/Z）	0.018mm
Dimensão da máquina
C×L×A	10800×6000×5500mm
Peso da máquina
Carga máxima da mesa de trabalho	15t
N.W	35.5t

CNC Milling with double cloumn machining center GMC1840 for sale

Precision Redefined: Equipped with high-precision linear guides, ball screws, and a state-of-the-art FANUC CNC system, it delivers micron-level accuracy (±0.002mm) and exceptional surface finish, ensuring every detail meets strict tolerances.

Power Meets Efficiency: Its high-torque spindle (up to 15,000 RPM) and rapid feed rates (30m/min) slash cycle times, boosting productivity while reducing energy consumption—ideal for high-volume production lines.

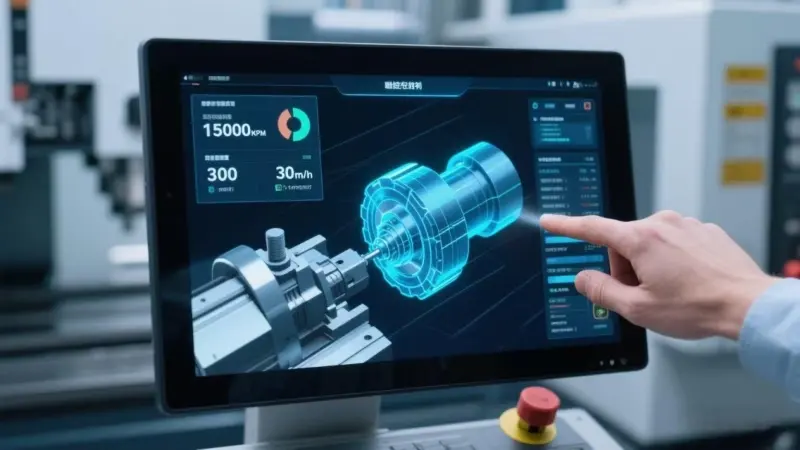

Smart & User-Centric: The intuitive touchscreen interface simplifies operation, while automated tool changers and programmable workflows minimize manual intervention. Remote monitoring capabilities keep you in control, even off-site.

From aerospace to heavy machinery, the GMC1840 isn’t just a machine—it’s a catalyst for manufacturing excellence.

Ready to elevate your production? Contact us for a custom quote.
